SV-300 High-Capacity Side Grip Pile Driver for 25–32 Ton Excavators – Engineered for Versatile Pile Types & Challenging Terrain
Dettagli
| Momento eccentrico | 5,6 kg·m | Forza centrifuga | 656 corone |
|---|---|---|---|
| Gamma di frequenza | 2300 – 3000 giri/min | Forza della pinza laterale | 385 kune |
| Forza di bloccaggio inferiore | 490 kN | Escavatore consigliato | 25 – 32 tonnellate |
| Evidenziare | High-capacity side grip pile driver,25–32 ton excavator pile driver,Versatile pile driver for challenging terrain |
||
Descrizione di prodotto
Product Introduction – SV-300 Side Grip Pile Driver
Product Keywords
Side Grip Pile Driver, Hydraulic Vibratory Hammer, Excavator Mounted Pile Driver, Heavy Duty Piling Attachment, Low Clearance Piling Equipment
Product Overview

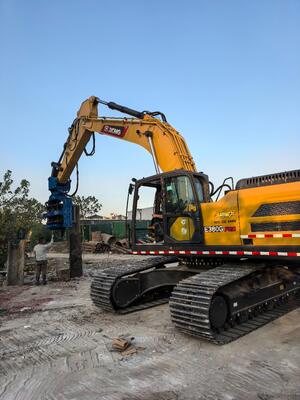

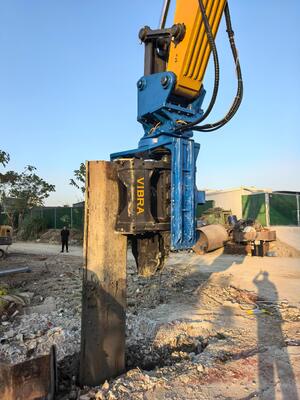

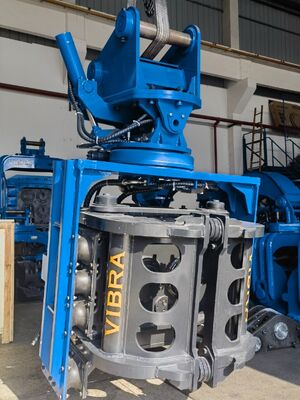

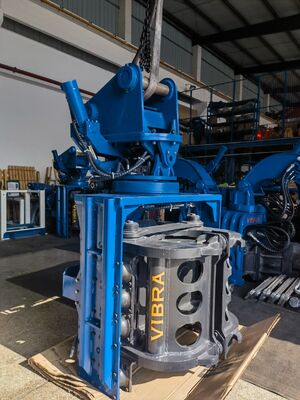

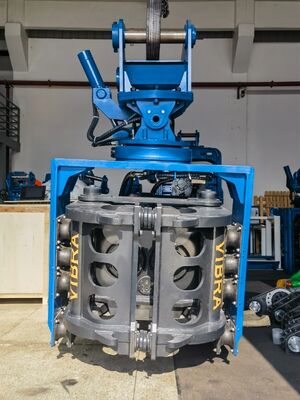

The SV-300 Side Grip Pile Driver is a high-performance hydraulic attachment engineered to convert standard 25–32 ton excavators into professional-grade piling rigs. As part of our factory-integrated manufacturing system, this model delivers exceptional power and reliability for demanding construction environments. With a powerful centrifugal force of 656kN and a robust dual-clamping system, the SV-300 handles steel sheet piles, H-beams, and circular pipe piles with ease. Its 360° rotation and ±30° side tilt enable precise operation in low headroom, confined spaces, and challenging job site conditions—all without requiring auxiliary equipment.
Key Features
| Feature | Description |
|---|---|
| 360° Rotation & ±30° Side Tilt | Full rotational capability combined with bidirectional tilt allows accurate pile positioning even in tight spaces and under low clearance structures. |
| Powerful Dual Clamping System | Equipped with side clamp (385kN) and bottom clamp (490kN) for superior gripping force, ensuring stable and secure pile handling throughout driving and extraction. |
| High Centrifugal Force | Delivers 656kN of centrifugal force, making it suitable for demanding geological conditions including dense soil, clay, and compacted ground. |
| Multi-Pile Compatibility | Interchangeable standard clamp seat interface enables quick switching between steel sheet piles, H-shaped steel, and circular pipe piles. |
| Low-Clearance Design | Specifically developed for factory, bridge, basement, and infrastructure projects where vertical height is restricted. |
| Simple Excavator Adaptation | Requires minimal modification to mount on standard 25–32 ton excavators, reducing installation time and cost. |
| Integrated Workflow | One device completes clamping, positioning, driving, and extraction without additional cranes or support equipment. |
Product Advantages
1. Superior Performance for Tough Ground Conditions
The SV-300 delivers 656kN of centrifugal force with a frequency range of 2300–3000 rpm, providing the power needed to penetrate dense soils, clay layers, and compacted ground commonly encountered in Southeast Asia, India, and Russia. This ensures consistent productivity across diverse job site conditions.
2. Enhanced Stability & Safety
With a side clamp force of 385kN and bottom clamp force of 490kN, the SV-300 offers exceptional gripping stability. Operators can work with confidence, knowing piles are securely held throughout the entire driving and extraction cycle, reducing the risk of slippage or accidents.
3. Maximum Job Site Efficiency
By combining multiple functions into a single attachment, the SV-300 significantly reduces equipment mobilization time and labor requirements. One machine and one operator can complete the entire piling process, improving project timelines and reducing operational costs.
4. Reduced Total Cost of Ownership
As a factory-integrated manufacturer, we offer competitive pricing without compromising on quality. The SV-300 is built with durable components and easily replaceable wear parts, ensuring long service life and lower maintenance costs over time.
5. Versatility Across Pile Types & Applications
The replaceable clamp seat interface allows seamless switching between steel sheet piles, H-beams, and circular pipe piles. This versatility makes the SV-300 ideal for contractors handling diverse piling projects, from foundation work to retaining walls and cofferdams.
6. Fast Return on Investment
By converting an existing 25–32 ton excavator into a specialized piling rig, the SV-300 eliminates the need to purchase dedicated piling equipment, offering exceptional ROI for contractors, rental companies, and infrastructure developers.
Technical Parameters – SV-300
| Parameter | Specification |
|---|---|
| Model | SV-300 |
| Eccentric Moment | 5.6 kg·m |
| Centrifugal Force | 656 kN |
| Frequency Range | 2300 – 3000 rpm |
| Side Clamp Force | 385 kN |
| Bottom Clamp Force | 490 kN |
| Operating Pressure | 32 MPa |
| Operating Flow | 220 – 280 L/min |
| Rotation / Tilt Angle | 360° / ±30° |
| Dimensions (L*W*H) | 1343 * 1230 * 2923 mm |
| Weight (with connector & clamp) | 3150 kg |
| Recommended Excavator | 25 – 32 tons |
Frequently Asked Questions (FAQ)
Q1: What types of piles can the SV-300 handle?
A: The SV-300 is compatible with steel sheet piles, H-shaped steel beams, and circular pipe piles through its interchangeable clamp seat system. Switching between pile types takes minimal time and effort.
Q2: Is the SV-300 suitable for challenging ground conditions?
A: Yes. With 656kN of centrifugal force and a frequency range of 2300–3000 rpm, the SV-300 is specifically designed to handle dense soils, clay, and compacted ground conditions commonly found in Southeast Asia, India, and Russia.
Q3: Does it require major modifications to my excavator?
A: No. The SV-300 is designed for simple adaptation to standard 25–32 ton excavators. Installation is straightforward and can be completed by local service teams with basic hydraulic knowledge.
Q4: Can it work in low headroom conditions?
A: Absolutely. The side grip configuration and compact design allow operation in spaces with restricted vertical clearance, such as under bridges, inside factories, and in basement construction.
Q5: What after-sales support do you provide for markets like India, Russia, or Southeast Asia?
A: As a manufacturer with direct factory support, we provide technical documentation, remote troubleshooting, and spare parts supply. We can also arrange on-site training or service support through our partner network upon request.
Q6: Can the SV-300 both drive and extract piles?
A: Yes. The SV-300 is designed to perform both driving and extraction operations without changing attachments or requiring additional equipment, making it a true all-in-one solution.
Q7: What is the typical delivery time for export orders?
A: Standard delivery is 30–45 days after order confirmation. We also maintain limited stock for urgent requirements. Please contact our sales team for current lead times.
Q8: How does the dual clamping system improve operation?
A: The combination of side clamp (385kN) and bottom clamp (490kN) ensures secure pile gripping throughout the entire process, providing superior stability, reducing vibration transfer to the excavator, and enhancing operator safety.
Why Choose Us
-
Consistent quality control throughout manufacturing
-
Competitive factory-direct pricing
-
Customization options for specific regional requirements
-
Reliable spare parts availability and technical support
Our SV-300 Side Grip Pile Driver is already trusted by contractors and rental fleets across Southeast Asia, India, and Russia, recognized for its durability, power, and ease of operation in demanding piling applications.
